NISE 2210/ 2210E

Intel® Atom™ 双核 D2550 1.86 GHz 无风扇系统，6个COM端口，6x USB2.0 和1x PCI/PCIe扩展

• 主要特点

• 板载Intel® Atom™ 双核 D2550处理器 1.86 GHz

• Intel® 82801JIR ICH10 RAID

• 1x DVI-I & 1x HDMI显示输出

• 双Intel® 82574IT GbE ***端口；支持WoL, teaming & PXE

• 6x COM (2x RS232/422/485，带隔离保护)

• 4x GPI & 4x GPO

• 6x USB2.0; 1x 外置的CFast插槽; 1x SIM卡槽

• 1x 内置的Mini-PCIe，带2个天线孔

• 支持+9V 到 +36VDC输入；支持ATX电源模式

• 产品介绍

• NISE 2210/2210E采用Intel® Atom™ 双核 D2550 CPU，具有更高的图形处理和运算性能。基于其出色的性能，NISE 2210/2210E可用于工业自动化、自助服务机如KIOSK 内检机、回收机以及工厂自动化等应用。NISE 2210/2210E支持多个I/O，***多支持6x COM (2x RS232/422/485，带隔离保护)和6x USB 2.0。另外，NISE 2200/2210E支持9V 到 36V宽压DC输入，宽温操作和1个PCI或PCIe扩展；专为满足不同工业应用需求而设计。

• 规格参数

• CPU	OnBoard Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cacheIntel® 82801JIR ICH10 RAID
  内存	2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECCPre-install 4G Industrial Grade Memory as the manufacture configuration for shipment
  双独立显示选项	HDMI + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type)HDMI + DVI-D (P/N: 60233DVI18X00, 1.8M cable, from DVI-I to DVI-D male type)

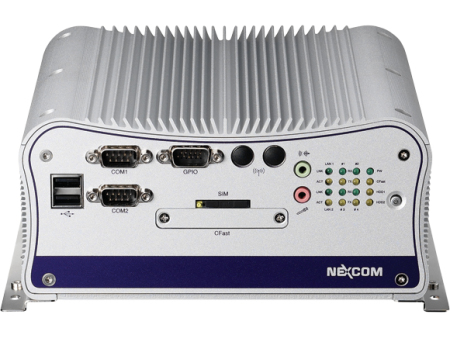

  前置I/O界面	ATX Power on/off switchHDD access/ power status LEDs2x DB9, RS232/422/485 w/ 2.5KV isolation protection2x USB2.01x DB15, 4x GPI & 4x GPO1x Mic-in & 1x Line outSIM card socketCFast socket2x antenna holes

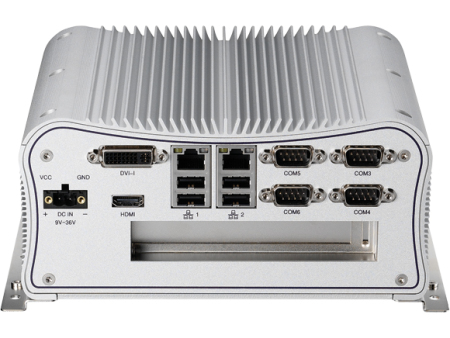

  后置I/O界面	1x 2-pin DC input, Support +9 to 36VDC input1x HDMI1x DVI-IDual Intel® 82574IT GbE *** ports; Support WoL, teaming and PXE??4x USB2.0??2x DB9, RS232/422/485??2x DB9, RS232 only
  设备	1x 2.5” SATA HDD driver bay1x External CFast socket1x External SIM card socket1x internal Mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free)
  扩展	NISE 2210: One PCI Expansion - Add-on card length: 176mm max. - Power consumption: 10W/slot max.NISE 2210E: One PCIe x4 Expansion (w/o Mini-PCIe device) - Add-on card length: 176mm max. - Power consumption: 10W/slot max. - Note: if Mini-PCIe device is installed, only supports PCIe x1)
  电源需求	Support +9 to 36VDC input; Support ATX power modeOptional 19V, 65W power adapter
  尺寸	195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)
  构造	Aluminum Chassis with fanless design
  运行环境	Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade deviceStorage temperature: -30°C to 85°CRelative humidity: 10% to 93% (Non-condensing)Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27Vibration protection w/HDD condition - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
  认证	CE approvalFCC Class A
  OS Support List	Windows XP 32bitsWindows 7 32bitsWinCE 7.0
