NISE 2310/ 2310E

Intel® Atom™ 双核 D2550 1.86 GHz无风扇系统，4个***端口，4个COM端口和1个PCI/PCIe扩展

• 主要特点

• 板载Intel® Atom™ 双核D2550处理器，1.86 GHz

• Intel® 82801JIR ICH10 RAID

• 1x DVI-I & 1x DVI-D显示输出

• 4x Intel® 82574IT GbE ***端口;支持WoL, teaming和PXE功能

• 4x RS232/422/485

• 4x GPI & 4x GPO

• 6x USB2.0; 1x 外置的CFast插槽; 1x SIM卡槽

• 1x 内置的Mini-PCIe，带两个天线孔

• 支持+9V 到 36VDC输入; 支持ATX电源模式

• 1x PCI 或 PCIe扩展

• NISE 2310/2310E 基于Intel® Atom™ 双核 D2550处理器，是另一款用于工业自动化的无风扇工业计算机。支持宽温操作，可在严苛、恶劣的环境下运行。NISE 2310/2310E都遵循了NISE系列无风扇、线缆少的设计理念。在设计上，NISE 2310/2310E配置了4x ***端口；支持WoL、*** teaming和PXE功能。另外，NISE 2310/2310E还提供6x USB2.0，双独立显示和出色的图形处理性能，可满足多种应用需求，1个PCI或PCIe x1扩展可供选择。NISE 2310/2310E系列支持+9V 到 36V 宽压DC输入，大大提升了其在任何电源环境下的可靠性。

• 产品规格

• CPU	OnBoard Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cacheIntel® 82801JIR ICH10 RAID
  内存	2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECCPre-install 4G industrial-grade memory as the manufacture configuration for shipment
  双独立显示选项	DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type)DVI-D + DVI-D

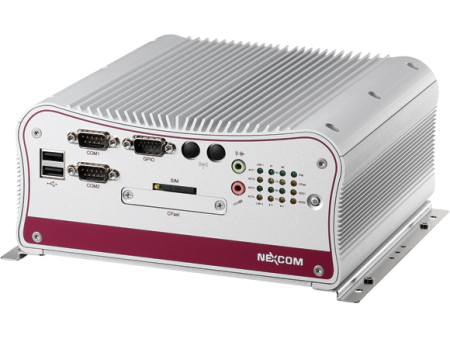

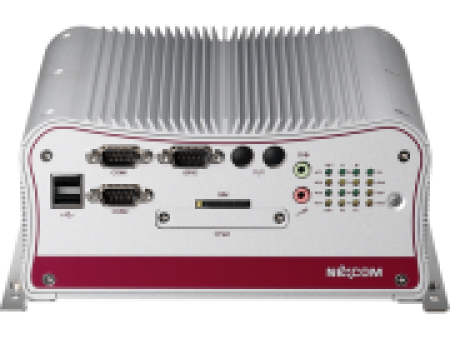

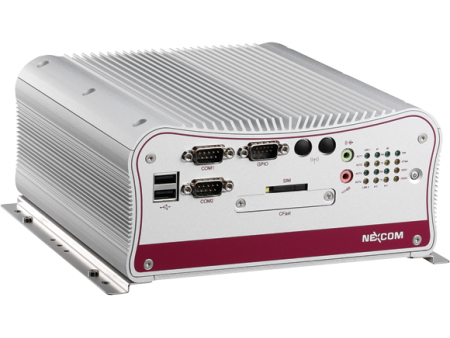

  前置I/O界面	ATX Power on/off switchHDD access/ power status LEDs2x DB9, RS232/422/485 w/ 2.5KV isolation protection2x USB2.04x GPO & 4x GPI1x Mic-in and 1x Line-outSIM card socketCFast socket2x antenna holes

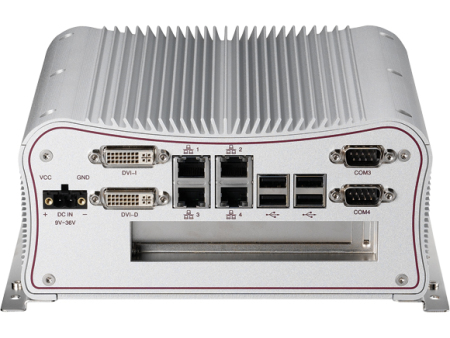

  后置I/O界面	1x 2-pin DC input, Support +9 to 36VDC input1x DVI-I1x DVI-D4x Intel® 82574IT GbE *** ports; Support WoL, teaming and PXE4x USB2.02x DB9, RS232/422/485
  设备	1x 2.5” SATA HDD driver bay1x External CFast socket1x External SIM card socket1x internal Mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free)
  扩展	NISE 2310: One PCI Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max.NISE 2310E: One PCIe x1 Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max.
  电源需求	Support +9V to 36VDC input; Support ATX power mode
  尺寸	195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)
  构造	Aluminum Chassis with fanless design
  运行环境	Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade deviceStorage temperature: -30°C to 85°CRelative humidity: 10% to 93% (Non-condensing)Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27Vibration protection w/HDD - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
  认证	CE approvalFCC Class A
  OS Support List	Windows XP 32bitsWindows 7 32bitsWinCE 7.0
